STAIRCASE TYPES
Stair type ST01
CLOSED STAIR
Install between walls or have balustrade to one or both sides
Stringers: housed 32mm
Treads: 32mm
Risers: 18mm

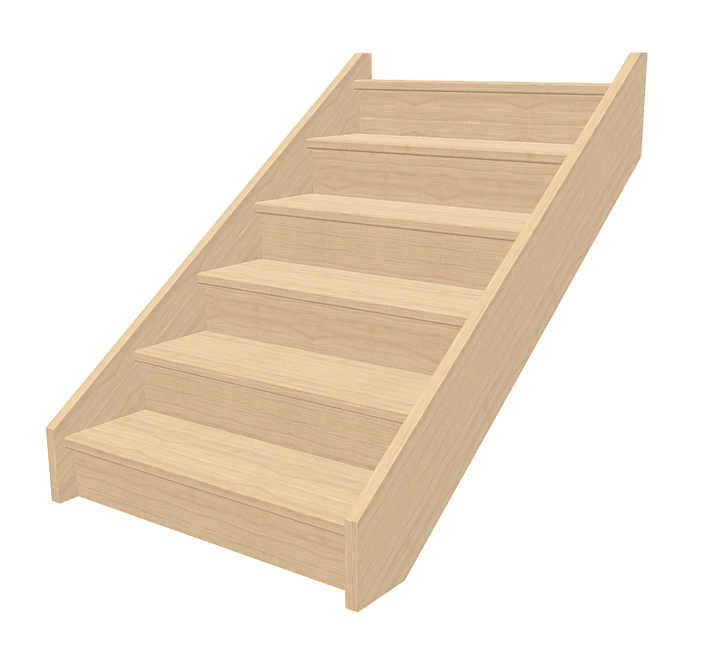

Stair type ST02
CLOSED STAIR
Housed stringer fixes to wall, cut stringer to open side suitable for balustrade
Stringer wall side: housed 32mm
Stringer open side: cut 32mm
Treads: 32mm
Risers: 18mm

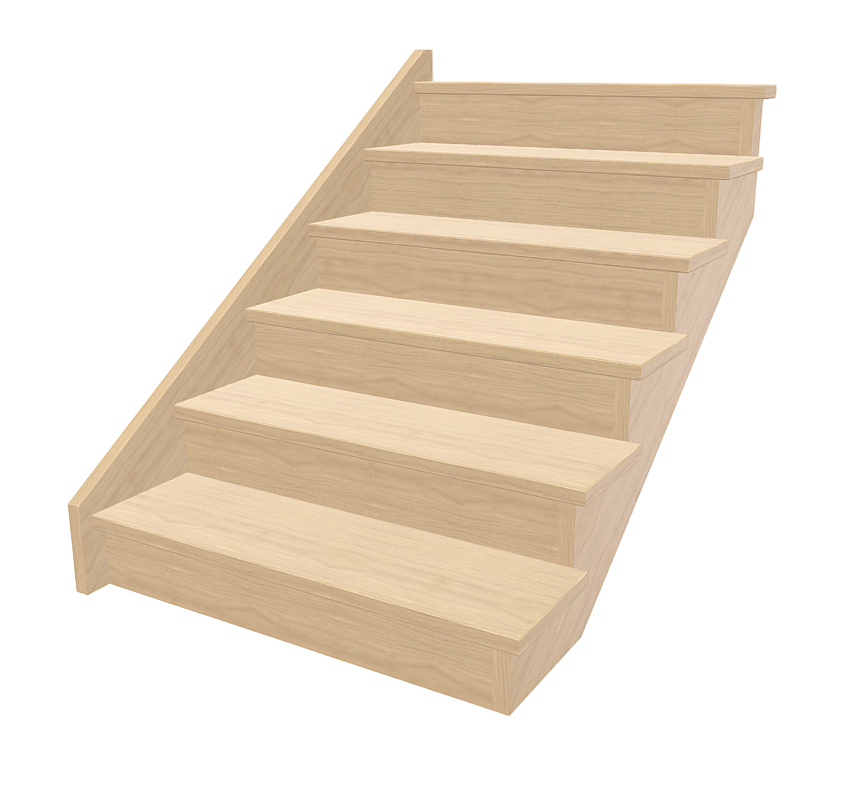

Stair type ST03
CLOSED STAIR
Concealed stringer to both sides suitable for installation between walls
Stringers: concealed 32mm
Treads: 32mm
Risers: 18mm
BALUSTRADE TYPES

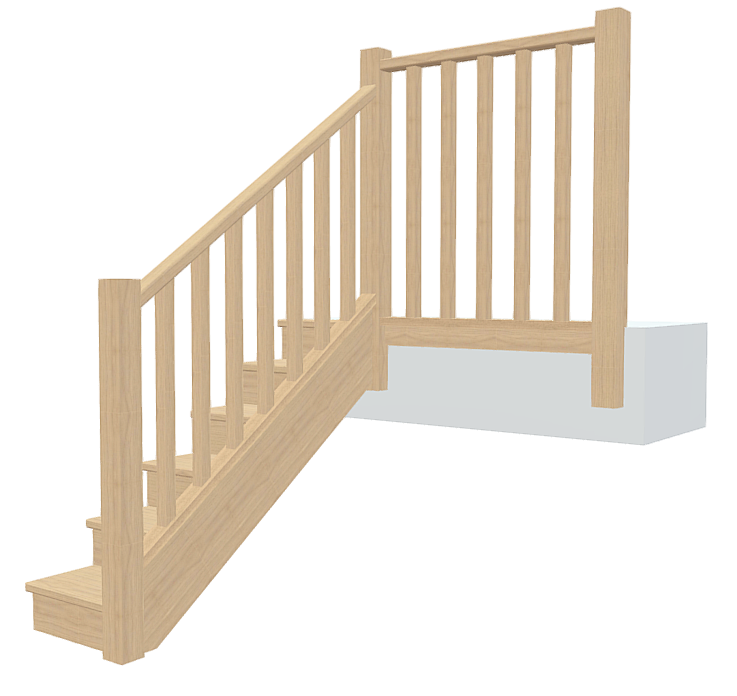

Balustrade type TB1
Suitable for housed or cut stringers
Post: TP1 timber - 90mm square
Handrail: HR07 timber
Baluster: TB1 timber - 42mm square

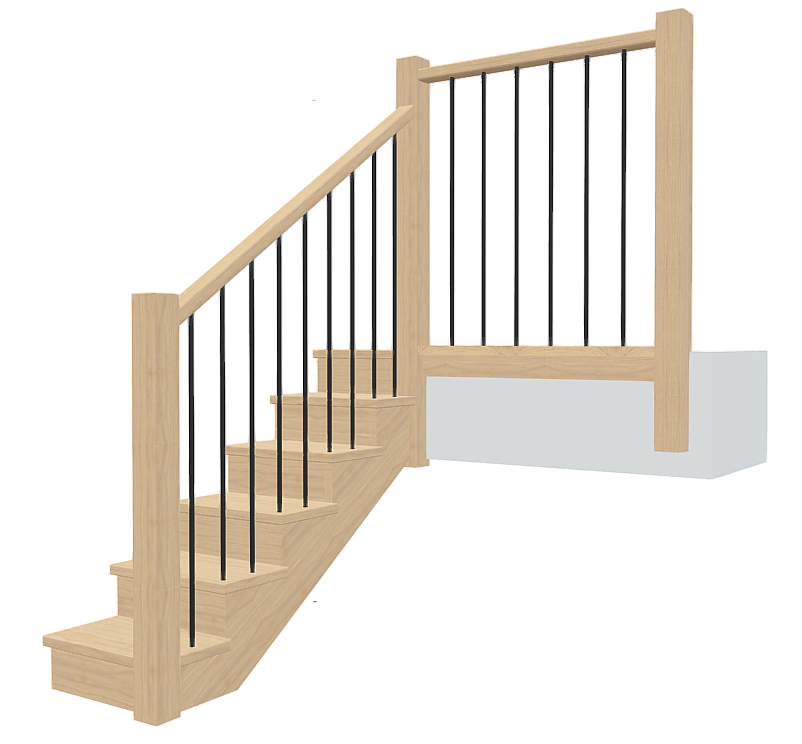

Balustrade type SB2 - black
Suitable for housed or cut stringers
Post: TP1 timber - 90mm square
Handrail: HR07 timber
Baluster: Steel - 14mm dia.

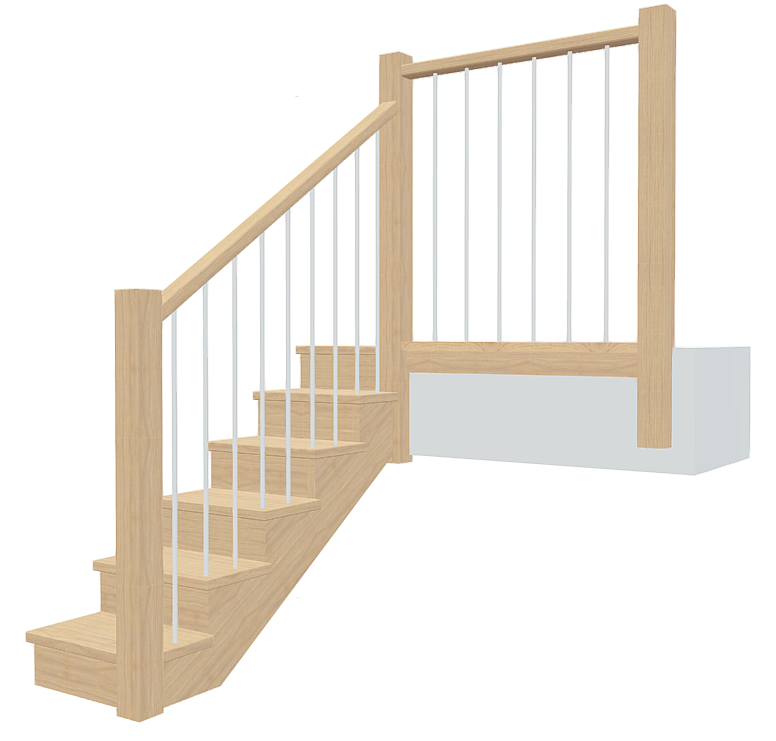

Balustrade type SB2 - white
Suitable for housed or cut stringers
Post: TP1 timber - 90mm square
Handrail: HR07 timber
Baluster: Steel - 14mm dia.
HANDRAIL TYPES

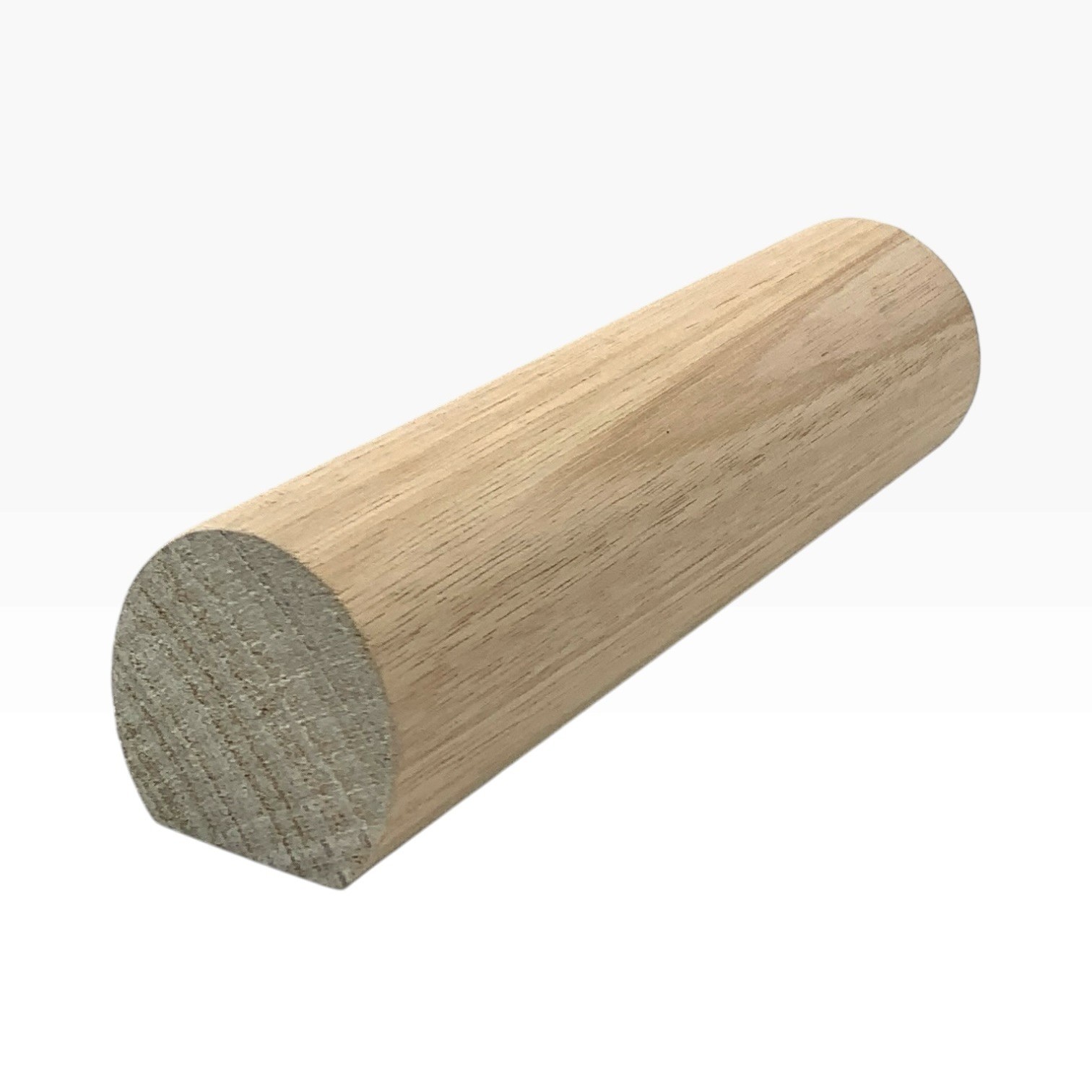

Handrail type HR04
Suitable for wall rails only
Available in Eco Oak, Tas Oak and US North Oak
Install with HRB1 handrail brackets available in satin, black or white finish

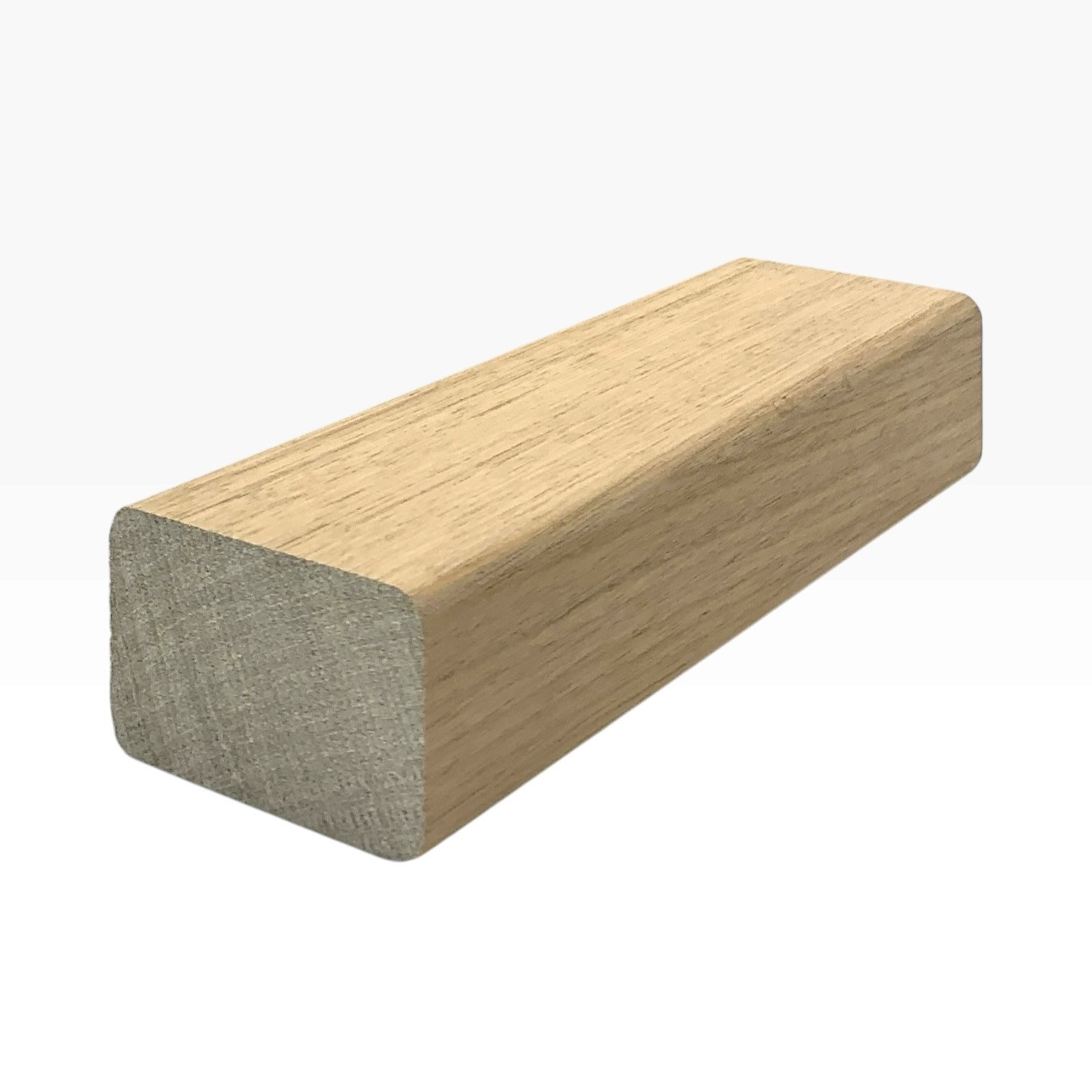

Handrail type HR07
Suitable for wall rails and balustrade
Available in Pine, Tas Oak and US North Oak
Install with HRB1 handrail brackets in satin, black or white finish
